Parallel Circuit Heat Tracer
| Output wattage at | 25, 33, 45, 50, 60 Watt/mtr |
| Braiding covering area | Over 85-90% |
| Max. maintain temp @ 10°C | 150 °C |
| Max. exposure temp. | 200 °C |
| Min. installation temp. | -40°C |
| Bending radius | 10 times*cable thickness |
| Voltage | 110, 220, 440 VAC |
| Length | 100, 150, 300, 500 Mtr |
| Bus Bar Size | 1.50, 2.50 Sq, mm Nickel Plated copper |
Description
Parallel Circuit (Cut-to-Length) Constant Wattage Heat Tracer
This robust heating cable provides predictable, fixed-output heat for freeze protection and temperature maintenance across diverse applications. Its parallel resistance design allows for on-site customization, making installation efficient and flexible.
Core Technology

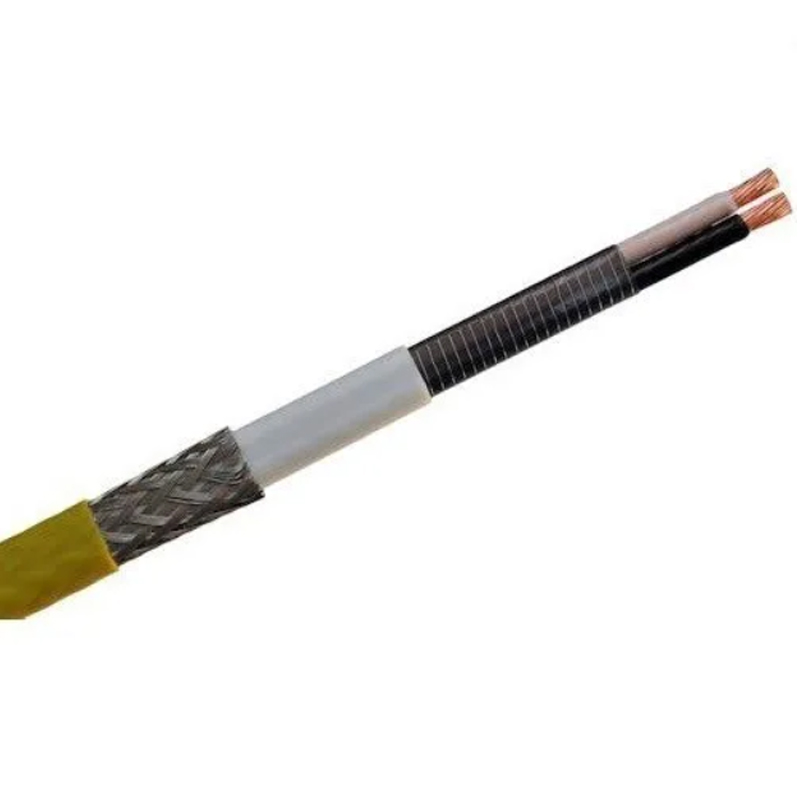

The Cut-to-Length Heat Tracer is a parallel resistance heating strip. It utilizes a thermally stable nichrome heating wire to create multiple independent heating zones along the cable. This design ensures a constant, predictable wattage output per meter and allows the cable to be cut and terminated in the field to the exact length required.
Key Features & Benefits
- Customizable Length: The parallel design allows the cable to be cut-to-length at the job site, reducing installation time and material waste.
- Constant Heat Output: Delivers a consistent, fixed wattage (e.g., $25 \text{ to } 65 \text{ W/m}$) ideal for maintaining specific process temperatures. Note: Requires a temperature controller to prevent overheating.
- Versatile Application: Suitable for freeze protection and temperature maintenance on metal or plastic pipes, tanks, and vessels.
- Durable Construction: Features a rugged, water-resistant Fluoropolymer (Teflon/FEP) or Silicon jacket for protection, allowing for use in corrosive environments and easy pulling into trace conduits.
- Proven Reliability: Trusted for over 12 years with thousands of meters installed.
Technical Specifications
| Parameter | Details |
| Wattage | 25, 33, 45, 50, 55, 60, $65 \text{ Watt/Meter}$ |
| Voltage | 24, 110, 220, 440 V (Single phase) |

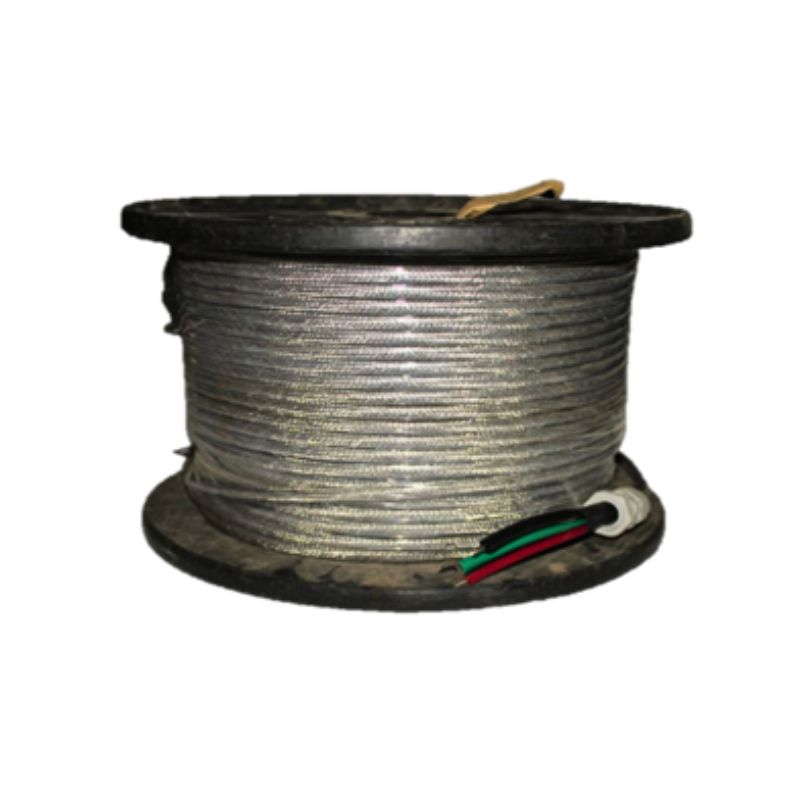

| Standard Packing | 100 or 150 Mtr plastic reels |
| Insulation | Fluoropolymer (Teflon/FEP) or Silicon |
| Circuit Type | Parallel Resistance (Cut-to-Length) |
Applications
This cable is essential for preventing costly damage by:

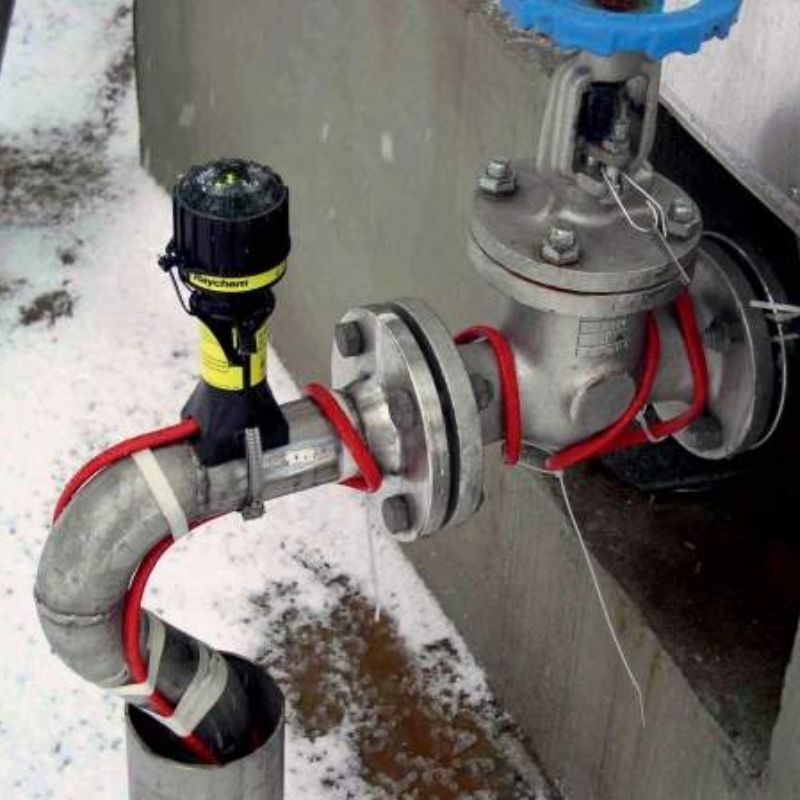

- Providing freeze protection for pipelines.
- Preventing ice buildup in roofs, gutters, and downspouts.
- Protecting exposed HVAC compressors from damage caused by freezing temperatures.
