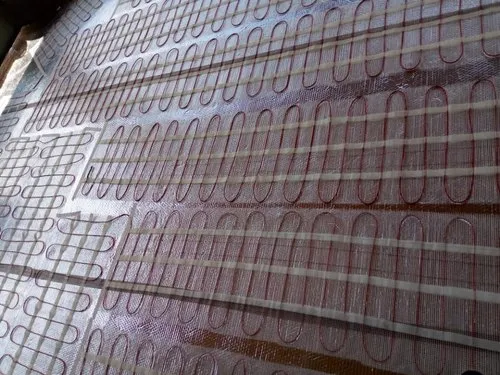

Under Floor Heating Mat
- Dimensions –all mats are 0.5m wide.
- Lengths available: 1mtr – 24 mtr,
- Rating Voltage: 110/230-240 vac
- Power unit: 150/165/200/225 Watt/m², +/-10% Min. bending radius: 30mm
- Min. cable space: 75mm
- Max. Ambient temperature: 40ºC Min. installation temperature: 5ºC
- Heating cable: Twin wires, grounded, insulation jacket by PTFE (Teflon) Insulation.
- Connecting leads: 2 Core 1.5 Sq.mm with grounded braid, length 3mtr
- 10 Year Guarantee on the Heating mat
(Valid if only in accordance with our instructions and all other conditions detailed in the warranty). - All components comply fully with all relevant Tests and measurement as per Standard.
Description
Under Floor Heating Mat Manufacturer in India

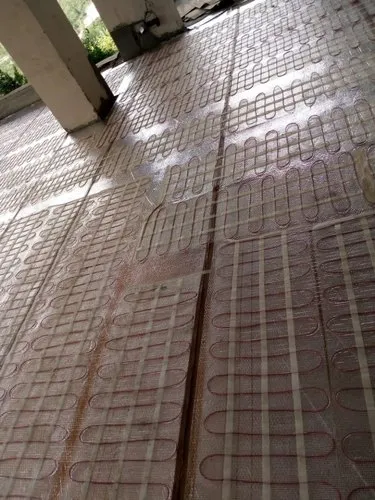

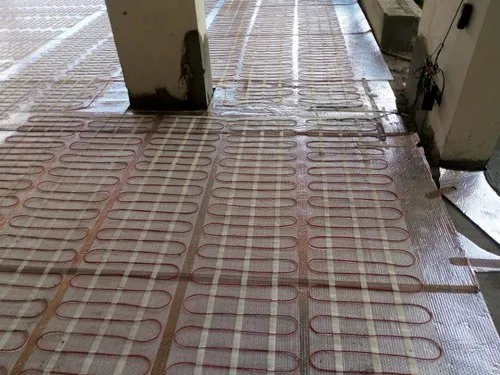

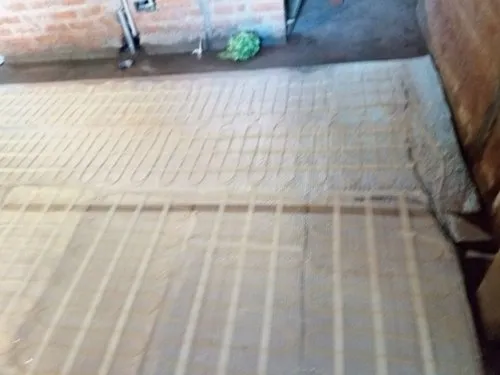

These Floor Heaters are designed for a variety of applications. Modern underfloor heating systems use electrical resistance elements (“electric systems”) to heat the floor. This type can be installed as the primary, whole-building heating system or as localized floor heating for thermal comfort. Under floor heating is a form of central heating which achieves indoor climate control for thermal comfort. Floor heating systems are used only for heating and employ non-corrosive, flexible heating elements including cables, pre-formed cable mats. Due to their low profile they can be installed in a thermal mass or directly under floor finishes. Electric systems can also take advantage of time of-use electricity metering and are frequently used as carpet heaters, portable under area rug heaters, under laminate floor heaters, under tile heating, under wood floor heating, and floor warming systems, including under shower floor and seat heating.
Benefits of Electric Underfloor Heating mat
- Heat is spread evenly across the whole floor area
- This provides a more comfortable climate for you wherever you are in the room. (Easy to install)
- With no water pipes involved, there is no danger of leaks so you don’t have to worry about damage to your property.
- There are cost savings too, as there is no need for any kind of maintenance contract as once the systems are installed they can be forgotten about for years to come.
- Children friendly.
- With no moving parts involved in floor heating, so no more scary noises in the night.
150 Watt/m² Heating Mat
| Sl. No. | Part No. | Mat Size | Area Sq. mtr/Feet | Watt. |
| 1 | HTT150/1 | 0.50×2 mtr | 1/11 | 150 |
| 2 | HTT150/1.5 | 0.50x3mtr | 1.5/16 | 225 |
| 3 | HTT150/2 | 0.50x4mtr | 2/22 | 300 |
| 4 | HTT150/2.5 | 0.50x5mtr | 2.5/27 | 375 |
| 5 | HTT150/3 | 0.50x6mtr | 3/33 | 450 |
| 6 | HTT150/3.5 | 0.50x7mtr | 3.5/39 | 525 |
| 7 | HTT150/4 | 0.50x8mtr | 4/44 | 600 |
| 8 | HTT150/4.5 | 0.50x9mtr | 4.5/50 | 675 |
| 9 | HTT150/5 | 0.50x10mtr | 5/55 | 825 |
| 10 | HTT150/6 | 0.50x12mtr | 6/66 | 900 |
| 11 | HTT150/7 | 0.50x14mtr | 7/78 | 1050 |
| 12 | HTT150/8 | 0.50x16mtr | 8/90 | 1200 |
| 13 | HTT150/9 | 0.50x18mtr | 9/100 | 1350 |
| 14 | HTT150/10 | 0.50x20mtr | 10/111 | 1500 |
| 15 | HTT150/11 | 0.50x22mtr | 11/122 | 1650 |
| 16 | HTT150/12 | 0.50x24mtr | 12/133 | 1800 |
165 Watt/m² heating mat
| Area Sq. | ||||
| Sl. No. | Part No. | Mat Size | mtr/Feet | Watt. |
| 1 | HTT165/1 | 0.50×2 mtr | 01-Nov | 165 |
| 2 | HTT165/1.5 | 0.50x3mtr | 1.5/16 | 250 |
| 3 | HTT165/2 | 0.50x4mtr | Feb-22 | 330 |
| 4 | HTT165/2.5 | 0.50x5mtr | 2.5/27 | 410 |
| 5 | HTT165/3 | 0.50x6mtr | Mar-33 | 495 |
| 6 | HTT165/3.5 | 0.50x7mtr | 3.5/39 | 578 |
| 7 | HTT165/4 | 0.50x8mtr | Apr-44 | 660 |
| 8 | HTT165/4.5 | 0.50x9mtr | 4.5/50 | 743 |
| 9 | HTT165/5 | 0.50x10mtr | May-55 | 825 |
| 10 | HTT165/6 | 0.50x12mtr | Jun-66 | 990 |
| 11 | HTT165/7 | 0.50x14mtr | Jul-78 | 1150 |
| 12 | HTT165/8 | 0.50x16mtr | Aug-90 | 1320 |
| 13 | HTT165/9 | 0.50x18mtr | 9/100 | 1485 |
| 14 | HTT165/10 | 0.50x20mtr | 10/111 | 1650 |
| 15 | HTT165/11 | 0.50x22mtr | 11/122 | 1800 |
| 16 | HTT165/12 | 0.50x24mtr | 12/133 | 1980 |
| Length (M) | Width (M) | Part No. | Watt. | Part No. | Watt. | Part No. | Watt. |
| 2 | 0.5 | HTT200/1 | 200 | HTT225/1 | 225 | HTT100/1 | 100 |
| 3 | 0.5 | HTT200/1.5 | 300 | HTT225/1.5 | 338 | HTT100/1.5 | 150 |
| 4 | 0.5 | HTT200/2 | 400 | HTT225/2 | 450 | HTT100/2 | 200 |
| 5 | 0.5 | HTT200/2.5 | 500 | HTT225/2.5 | 560 | HTT100/2.5 | 250 |
| 6 | 0.5 | HTT200/3 | 600 | HTT225/3 | 675 | HTT100/3 | 300 |
| 7 | 0.5 | HTT200/3.5 | 700 | HTT225/3.5 | 780 | HTT100/3.5 | 350 |
| 8 | 0.5 | HTT200/4 | 800 | HTT225/4 | 900 | HTT100/4 | 400 |
| 9 | 0.5 | HTT200/4.5 | 900 | HTT225/4.5 | 1000 | HTT100/4.5 | 450 |
| 10 | 0.5 | HTT200/5 | 1000 | HTT225/5 | 1125 | HTT100/5 | 500 |
| 12 | 0.5 | HTT200/6 | 1200 | HTT225/6 | 1350 | HTT100/6 | 600 |
| 14 | 0.5 | HTT200/7 | 1400 | HTT225/7 | 1575 | HTT100/7 | 700 |
| 15 | 0.5 | HTT200/8 | 1600 | HTT225/8 | 1800 | HTT100/8 | 800 |
| 16 | 0.5 | HTT200/9 | 1800 | HTT225/9 | 2000 | HTT100/9 | 900 |
| 18 | 0.5 | HTT200/10 | 2000 | HTT225/10 | 2250 | HTT100/10 | 1000 |
| 20 | 0.5 | HTT200/11 | 2200 | HTT225/11 | 2400 | HTT100/11 | 1100 |
| 22 | 0.5 | HTT200/12 | 2400 | HTT225/12 | 2700 | HTT100/12 | 1200 |
| 25 | 0.5 | HTT200/12.5 | 2500 | HTT225/12.5 | 2800 | HTT100/12.5 | 1250 |
